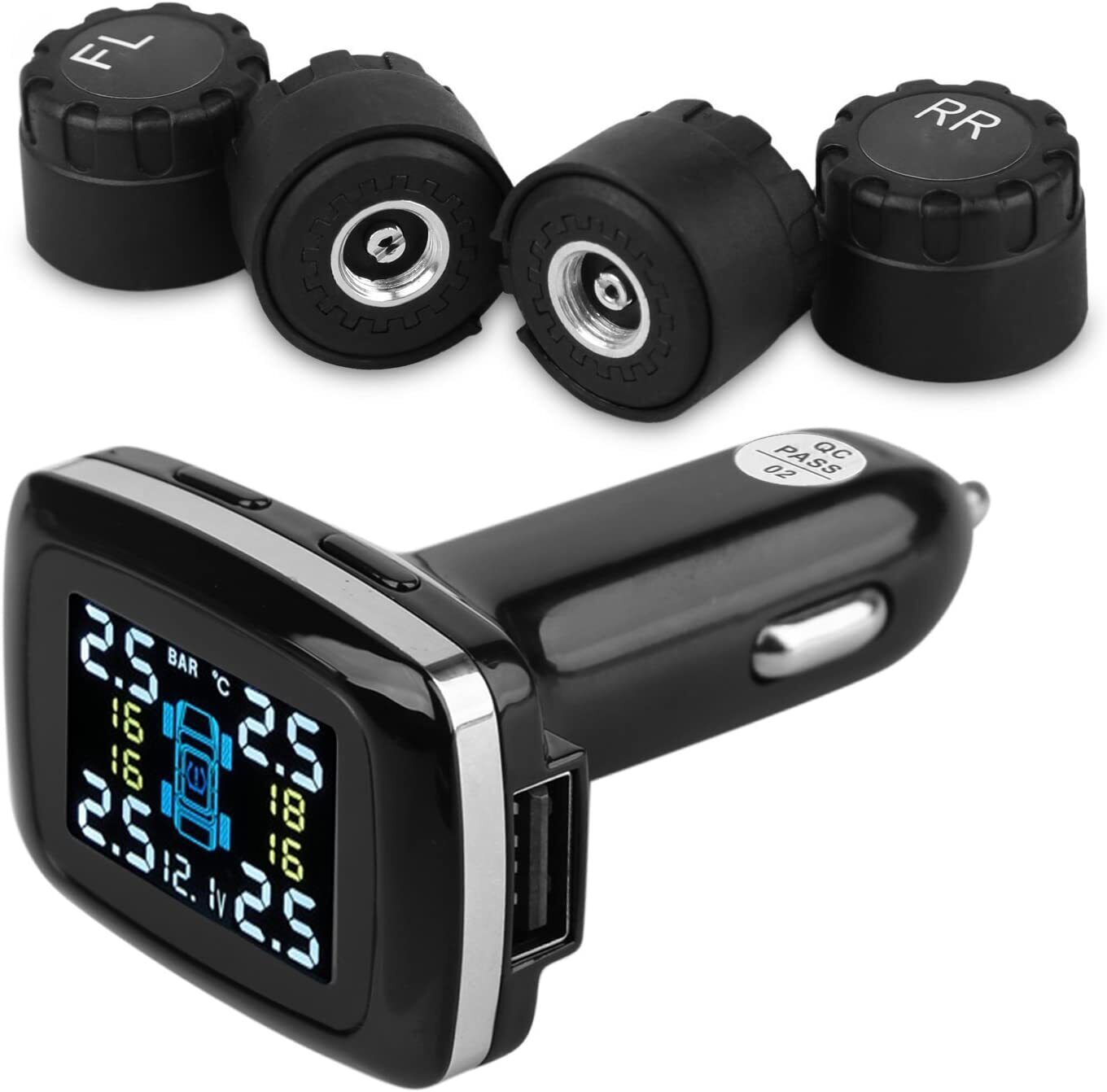

Wireless Car Tire Pressure Monitoring System (TPMS) with 4 Sensors

Features:

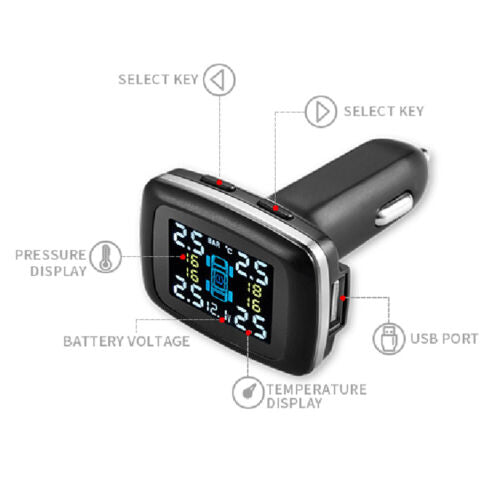

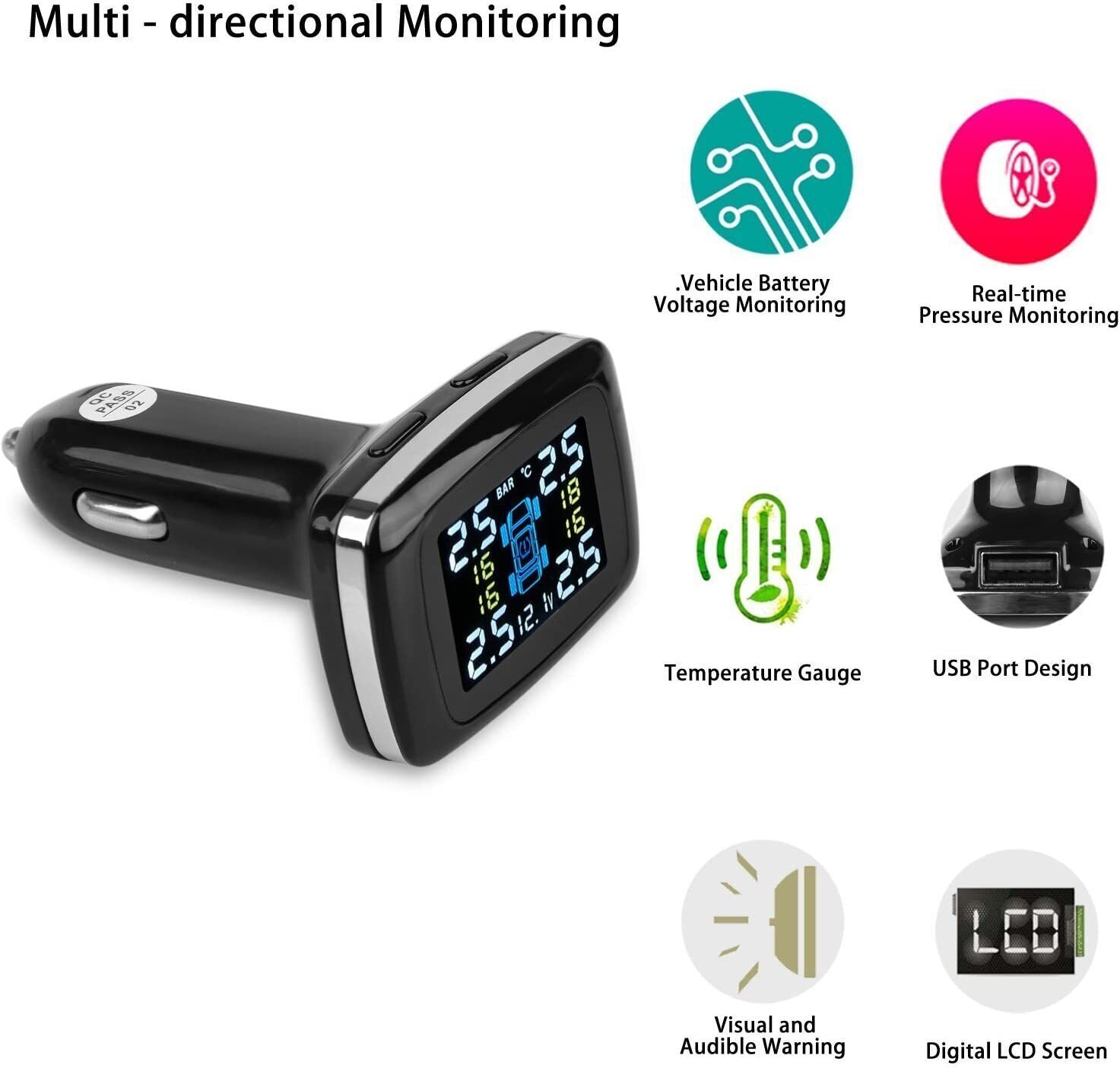

• Full-Color Screen Design: The TPMS C100 features a stylish, high-end full-color screen that enhances your car's technical and environmental appeal. It displays tire pressure and temperature in real-time and provides visual and audible alerts for abnormal conditions.

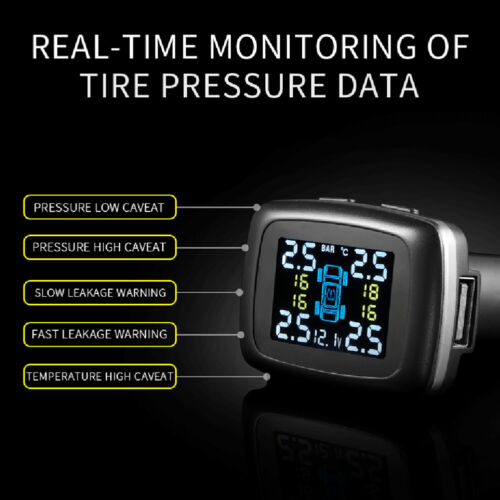

• Multiple Alarm Modes: Equipped with six alarm modes, including rapid leak, high/low pressure, high temperature, sensor low voltage, and sensor failure alarms. Users can freely set pressure and temperature alarm values to suit their needs.

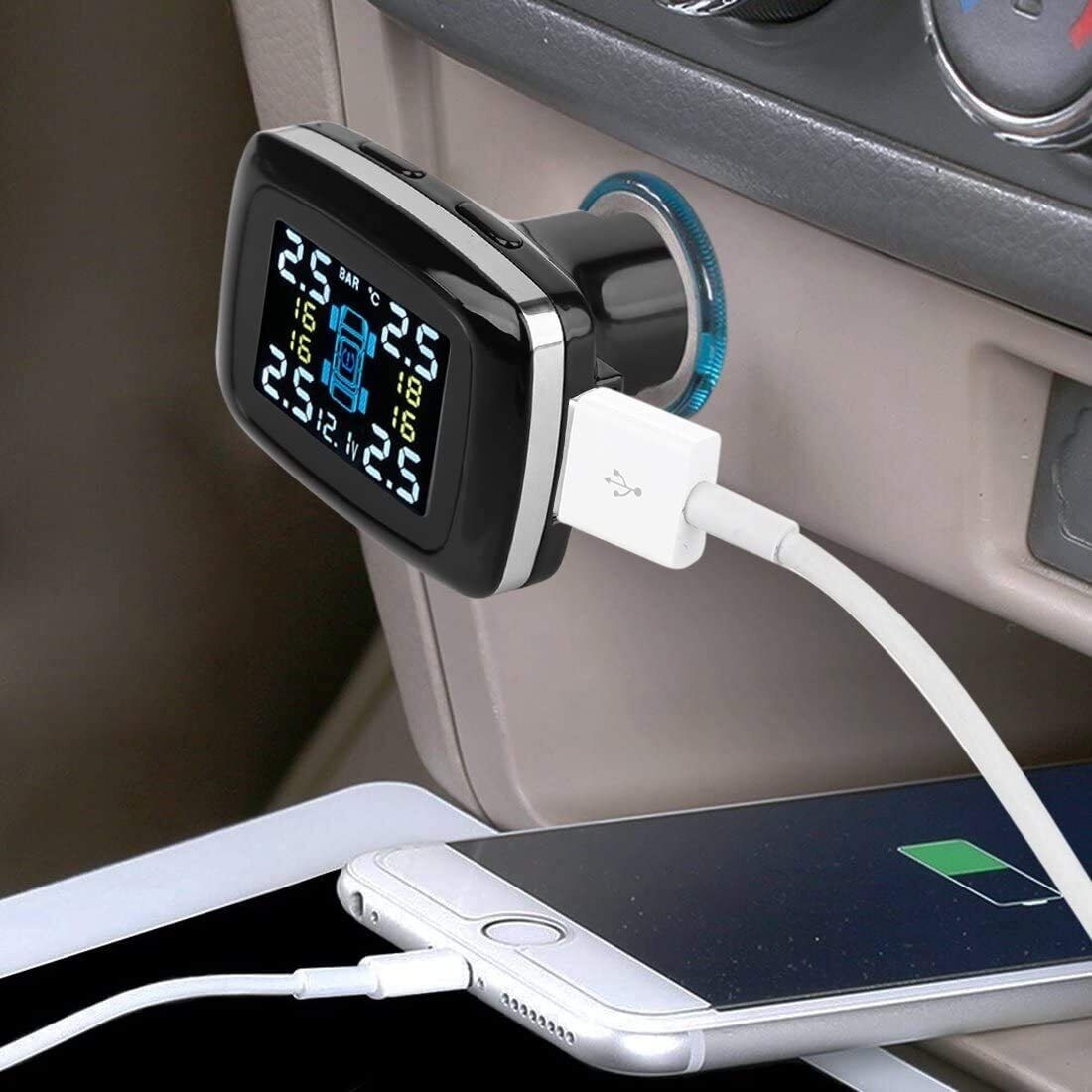

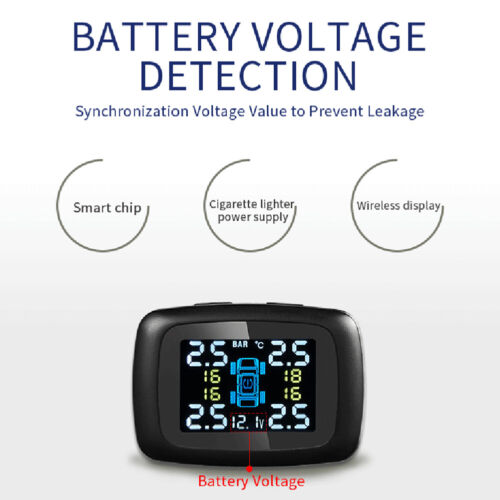

• Convenient Charging: The TPMS C100 uses a car cigarette lighter for charging, ensuring long-term power. It also displays car battery voltage, helping you monitor for any abnormalities. The sharp edges can serve as an emergency escape hammer.
• Low-Power, Long-Life Sensors: The system includes four advanced external sensors with low power consumption (C1632 battery lasts up to 1 year) and a long service life (up to 3 years). The sensors are small, lightweight, and highly accurate, withstanding harsh environments (0-3.5BAR).

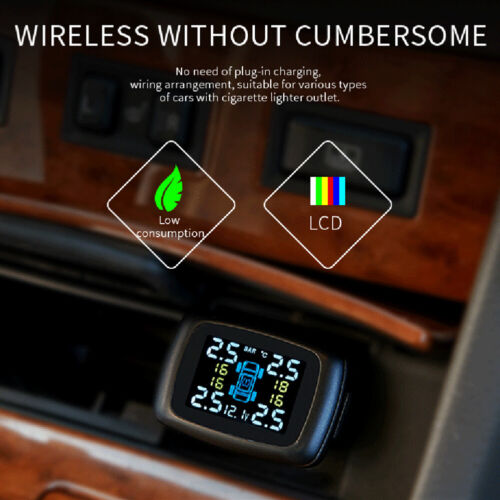

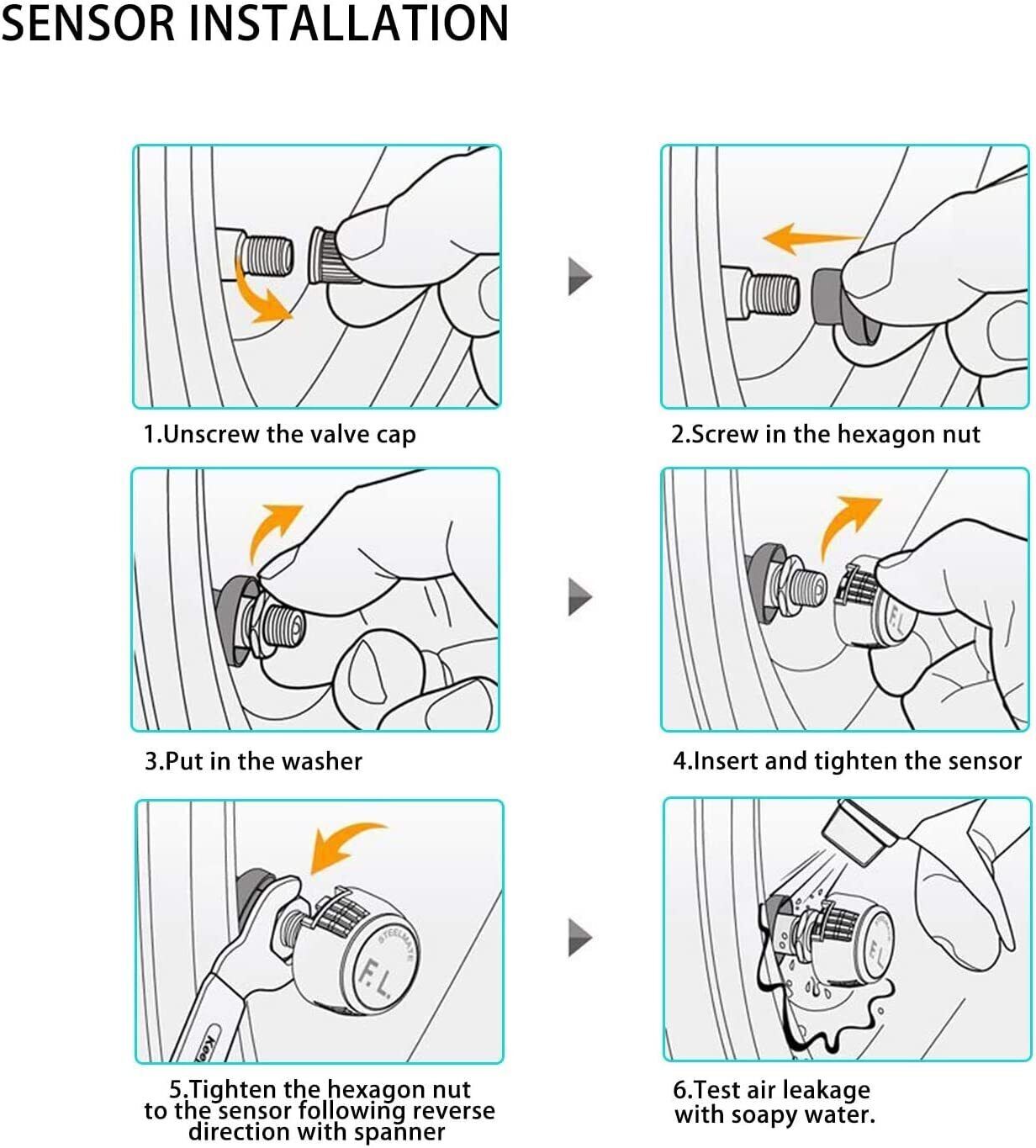

• Easy Installation: Simply plug the product into the cigarette lighter, attach the sensors to the tires, and wirelessly pair them with the display. After 10 minutes of driving, the system will automatically start monitoring, saving you time and effort.

Specifications:

• Host Parameters:

  • Material: PC
  • Screen: LCD display
  • Chip: Infineon, Germany
  • Display: Pressure, temperature, air leak alarm
  • Modulation Method: ASK
  • Frequency: 433.92MHz±20.00MHz
  • Working Temperature: -20℃~80℃
  • Storage Temperature: -30℃~85℃
  • Connection Method: Cigarette lighter port
  • Factory Default High Pressure Value: 3.0Bar
  • Charging Voltage: DC 5V
  • Factory Default Low Pressure Value: 2.0Bar
  • Working Current: ≤ 5MA
  • Factory Default Temperature Value: 68℃

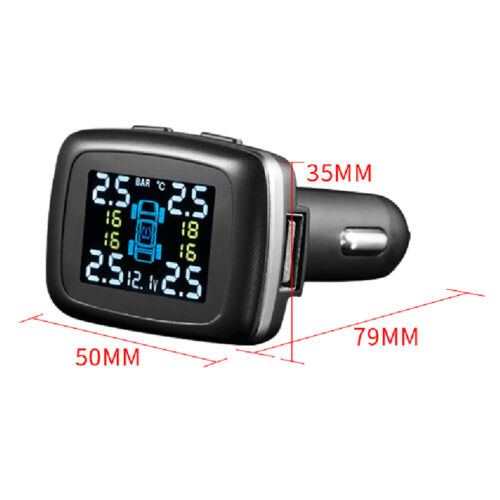

  • Size: 483475mm
  • Weight: 39g
  • Installation Location: Cigarette lighter port

• Sensor Parameters:

  • Material: Nylon with fiber/copper nozzle
  • Waterproof and Dustproof Rating: IP67
  • Chip: Infineon, Germany
  • Frequency: 433.92MHz±20.00MHz
  • Sensor Pressure Range: 0-3.5BAR
  • Storage Temperature: -30℃~86℃
  • Accurate Pressure: ±0.1Bar
  • Accurate Temperature: ±3℃
  • External Working Temperature: -20℃~80℃
  • Built-in Working Temperature: -40℃~+120℃
  • External Sensor Size: 1.91.91.5cm
  • External Sensor Weight: 12g
  • External Battery: CR1632

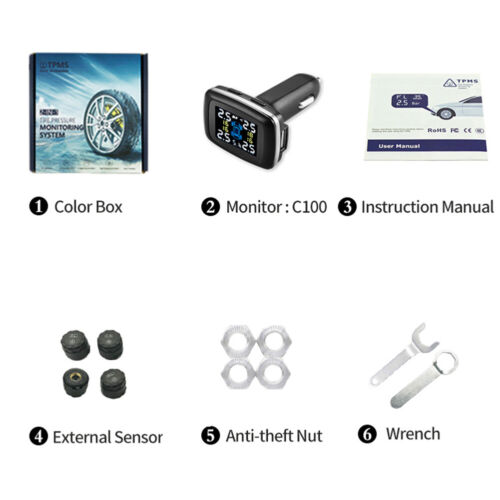

Package Includes:

• 1 x Host
• 1 x Wrench Tool Set
• 4 x Anti-Theft Nuts
• 4 x Sensors

Upgrade your vehicle with the TPMS C100 for enhanced safety and convenience. Order now to ensure your tires are always in optimal condition!
